Aluminium 6.5-10 Tube Pitch Radiator Fin Machine , Fin Tube Machine
Customized
Product introductions:
Multi width combined hob aluminum fin forming machine features:
high precision, high speed, can be customized according to customer
requirements of different shapes of fins.

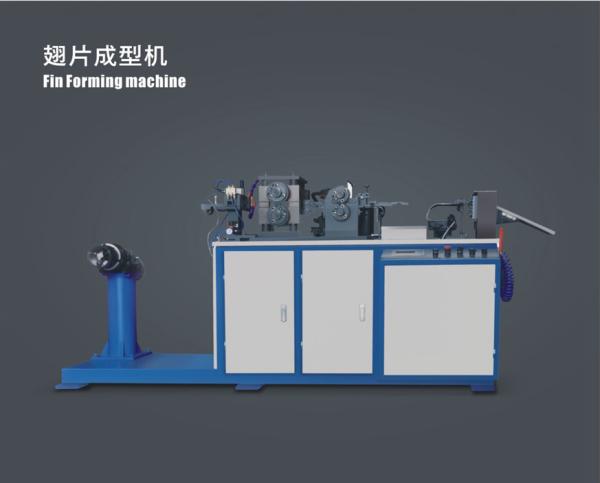

The Multi width combined hob aluminum fin forming machine is used
to produce heat exchange wavy fins with a combined width fin
forming roller.
The fin rolling machine is equipped with the following devices:
decoiler, tensioning device, feeding, micro oil spray lubrication,
fin forming, correction and cutting function. The machine is
designed with protections such as strip run-out detection, blockage
detection,cutting fault indicator, fin forming unit overloading
protection, and fault indication light.
The electrical control system of the fin making machine adopts PLC,
inverter, AC servo control, and touch screen control.
The parameters are easily set through the touch screen.
The fin forming roller is the most important part of the aluminum
fin machine, and the combined fin forming roller reduces the
customer's production cost by avoiding the trouble of changing fin
forming roller at each width.
Product advantages:
high precision
high speed
can be customized according to customer requirements of different
shapes of fins
Product features:
1.It can have multi blades,can do maximum 8-10 combination cutting.
2.Automatically cutting and counting
3.It can have 2 rows material rolls machine.
4.Size can be customized
5.It can be programmed.
6.It can have shields or no shields
7.high precision
8.high speed
9.can be customized according to customer requirements of different
shapes of fins
Product quick details:
| Fin Type: | Radiator Fin | production efficiency | 60sec. |
| Workstation | 1 | Number of preset models | Non. |
| Machine weight | 800kg | Programmable | yes |
| warranty | 12 months | shape | unregular |
| mould | can customise | after-sale service | yes |
| Fin Height: | 8mm | brand name | SUNHOPE |
| Fin Thickness: | 0.08mm | Speed: | 100 M/min |
| Core Row Number: | 1-4 Rows | Voltage, power | 220V/50Hz,2.5kw |
| design style | can customise | running speed | adjustable |
| Driving mode | Servo pneumatic | | |
About us:
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items
of radiator for small car and truck, covering most famous car like
BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ,
MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced
CNC, electric pulse, around 100sets new molds developed every year
Our company has been engaged in the manufacture and development of
automobile radiator condenser products for more than 15 years. Most
of the products are sold to all countries and regions in the world,
and have accumulated rich production experience.Our company is good
at manufacturing all the process of the radiator tank production
line.In recent years,many companies from other countries in the
same industry also bought the CKD from us and purchased the machine
equipment from us as well.
At the same time, our company provides customers with all kinds of
radiator, condenser required hardware and plastic components.
Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your
place or buying any products , please contact us and we will
provide you with the best service and best price.
FAQ:
1.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and
down fine-tuning height is not more than 0.1mm.
2.Does one set of hob can use different thickness finned materials?
Yes,it can.But we don’t suggest big difference in thickness,most of
the thickness of fins is 0.07-0.08mm at the moment.
3.Does it can change the hob?
The hob is changeable,but the main console is the same,the position
where the hob installed must match with the main console.
4.Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can
combine different width size of fins,most can combine 10 different
width size of fin in one set of hob.
