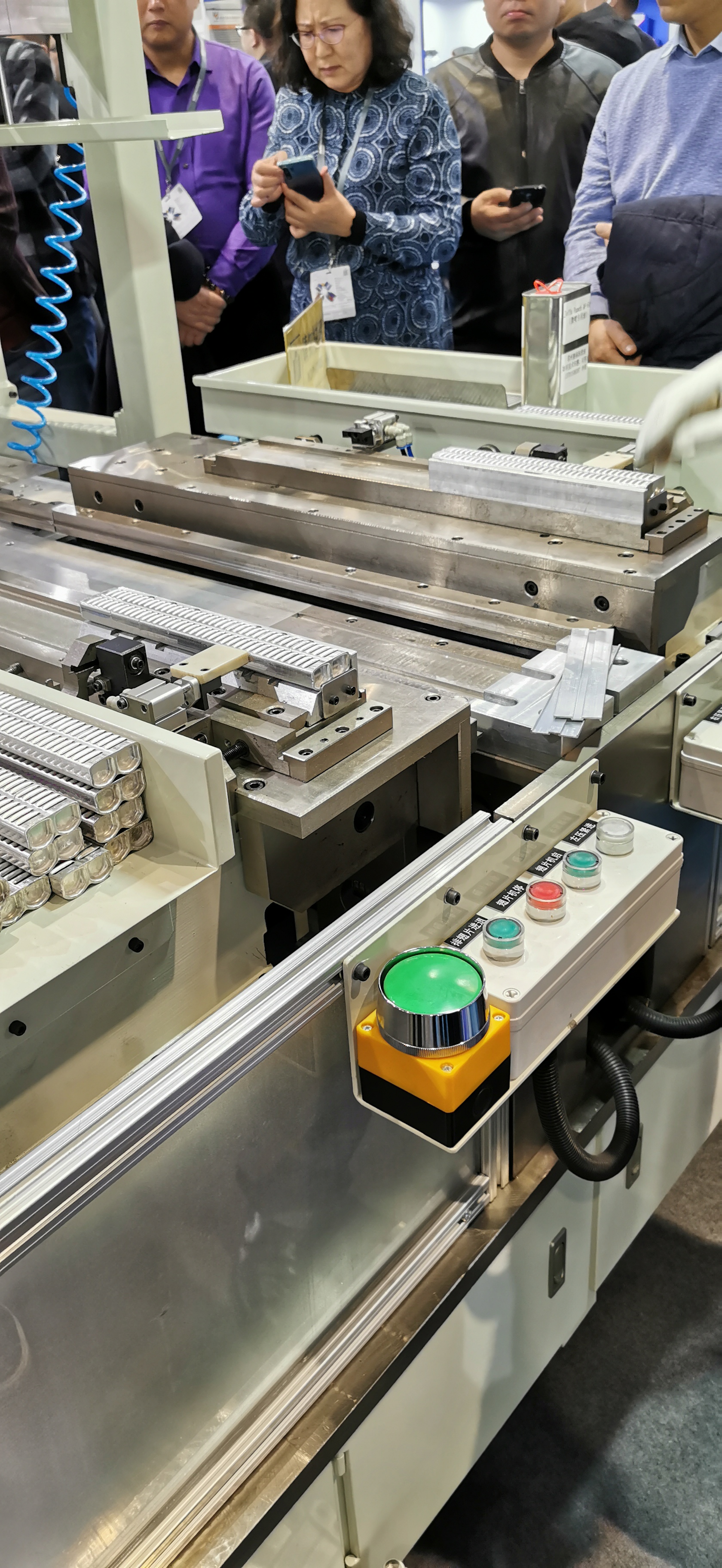

High Speed Radiator Core Builder for OEM production

Produt specifications:

Product features:

1. can suitable to different types of tube

2. can adapt to different size of cores

3. It has a fews types of core builder,for example condenser core builder machine,intercooler core builder machine,heater aluminium core assembling machine and water tank core machine.

Product advantages:

1) The flat tubes are stocked in a tube magazine, and are distributed through a servo tube distribution device. The overall comb teeth structure could ensure the flat tube positioning accuracy.

2) The radiator core builder is designed with 2-hand push buttons for safety operation.

3) The radiator core builder is easy for operation, adjustment, and tooling replacement.

4) The left and right push mechanism, and clamping mechanism are controlled by the hydraulic cylinders.

5) The flat tubes are distributed through a servo tube distribution device.

6) The radiator core assembly machine can be equipped with the header flaring mechanism

About us:

With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.

FAQ:

1. How long can finish assembling the radiator core by the semi automatic core building machine?

The experienced workers can assemble one aluminium core builder in 3-5 minutes,depends on the size of core.

2. What’s the requirements for assembling the head plate of automatic core building machine?

The requirements for assembling the head plate of automatic core building machine is relatively high,the allowable tolerance is small,less burr,the direction of each hole of tube must maintain smooth.

3. Does it can assemble the same height of fins in the radiator core and condenser core in the same machine?

No,because it has big difference between the radiator tube and condenser tube,it can’t be mixed use.

4. Does it can assemble different heights of fins in the same machine ?

No,at the moment the core building machine only can assemble the cores which has single specification height of fins.If it needs to assemble different heights of fins,it needs to customize from us.

Our company has been engaged in the manufacture and development of auto radiator condenser products for more than 15 years. Most of the products are sold to various countries and regions in the world, and we have accumulated rich production experience.

With the development of the heat exchanger industry, more and more countries and regions are committed to building local radiator condenser factories. With our knowledge of the industry, we have been helping foreign clients set up radiator factories in this region for the past five years. We provide customers with pre-sales and after-sales equipment design and service according to product size. We will send technicians to guide the installation on site, ensure the smooth production of the customer's factory, and provide free consulting services when there are any questions during the production process. At the same time, our company provides customers with various hardware and plastic parts required for radiators and condensers. Ensure the supply and quality of finished products.

If you are interested in setting up a radiator factory in your place, please contact us, we will provide you with the best service.
