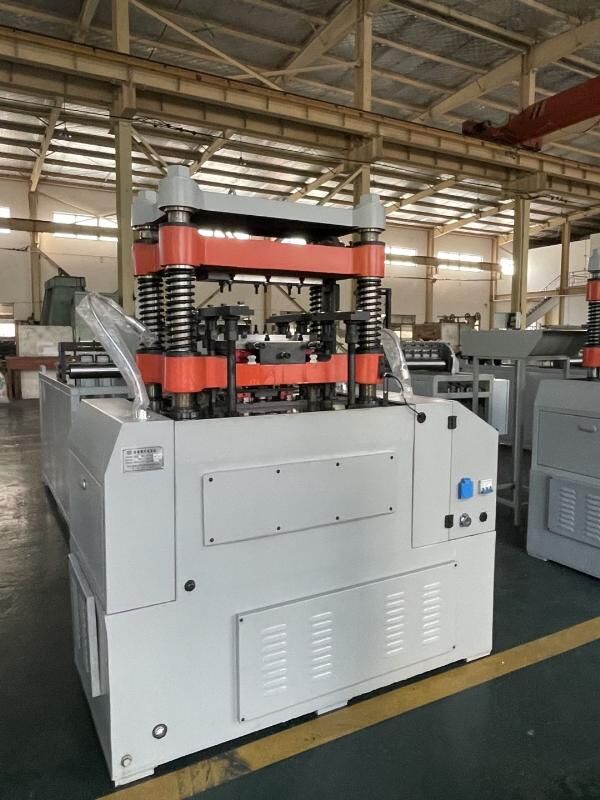

AC220V 1.5 tons Automatic fin forming machine
1. Product Introduction and main uses:
Fin forming machine is the key equipment in the process of various
types of heat exchanger production, with different models and
specifications of the mold, can automatically and stably process
different types and sizes of aluminum, copper and stainless steel
heat transfer fin. The machined parts have the characteristics of high precision in
size and shape, beautiful appearance and low processing cost.
2. Performance parameters of the molding machine:
2.1 The motor model used by the equipment is Y series, with a power
of 3-5.5kW
2.2 Maximum punching times at rated frequency :100 times /min
2.3 The punching force of the equipment is 5 tons, the thickness of
the aluminum strip is 0.1-0.5mm, and the maximum width of the
aluminum strip is 300mm
2.4 The maximum punching fin size of the equipment (tooth height x
tooth pitch) CX1410 12mm x 10 mm
(See table below for specific models and parameters)
2.5 Power rated voltage: AC380V
2.6 Control circuit voltage: AC220V
2.7 rated frequency: 50Hz
2.8 Appearance of the machine 1200 ×600 × 1500
2.9 The weight of this machine is about 1.5 tons
Technical parameter:
MODEL | Biggest fin width (mm) | Maximum aluminum strip thickness(mm) | Maximum fin height(mm) | Maximum fin pitch(mm) | Production frequency of punching(次/分) | Power voltage(v) | Power(kw) | Remarks |
1210B | 300 | 0.5 | 10 | 10 | 0-100 | 380 | 3 | - Variable Output with variable-frequency drive
|
1410B | 300 | 0.5 | 12 | 10 | 0-100 | 380 | 3 | - Variable Output with variable-frequency drive
|
| 1610B | 300 | 0.5 | 14 | 10 | 0-100 | 380 | 3 | - Variable Output with variable-frequency drive
|
1810B | 300 | 0.5 | 16 | 10 | 0-90 | 380 | 4 | - Variable Output with variable-frequency drive
|
2010B | 300 | 0.5 | 18 | 10 | 0-90 | 380 | 4 | - Variable Output with variable-frequency drive
|
1410BM | 450 | 0.5 | 12 | 10 | 0-90 | 380 | 5.5 | - Variable Output with variable-frequency drive
|
1410BL | 600 | 0.5 | 12 | 10 | 0-80 | 380 | 7.5 | - Variable Output with variable-frequency drive
|
