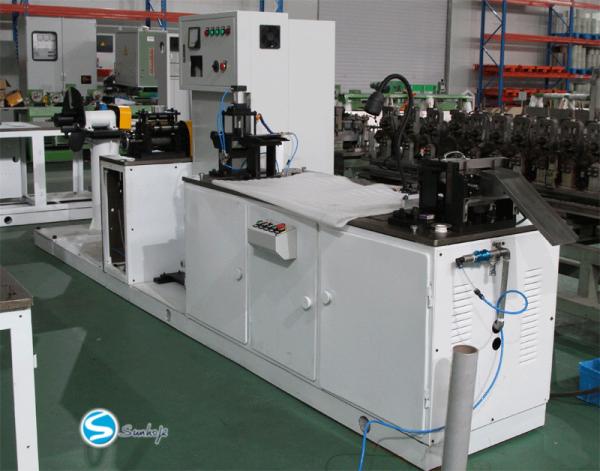

Aluminium 6.5-10 Tube Pitch Radiator Fin Forming Machine Roller
Forming Model
Product Description:
The Radiator Fin Forming Machine is a high-performance and
versatile machine designed to produce aluminum fins with a louver
and serrated fin type. It is particularly suitable for producing
aluminum radiator fins with a 6.5-10mm tube pitch. The machine is
equipped with a fin forming die and two 2.2KW motors for fin
forming, providing a reliable and effective production process. The
8mm fin height fin forming machine features a maximum pressure of
0.8Mpa and a 220V aluminum fin press machine. It also comes with a
flat fin machine with multi hobs for customized production
applications.
Features:
- Product Name: Radiator Fin Forming Machine
- Fin Pitch: 6.5-10mm
- Maximum cut-off times: 60 Times /min
- Machine Model: Radiator Fin Forming Machine
- Fin Forming Die: 1 Set
- Fin Forming Accuracy: ±0.1mm
- Aluminum fin forming machine for radiator
- High Speed Radiator Fin Forming Machine 5mm Height 1.5mm Tube
Thickness
- AC220V 1.5 Tons Automatic Fin Forming Machine Single Blade
Technical Parameters:
| Property | Value |
|---|
| Fin Forming Motor | 2.2KW |
| Fin Forming Die | 1 Set |
| Fin Height | 5-8mm |
| Fin Forming Power Supply | 380V/50HZ |
| Machine Model | Radiator Fin Forming Machine |
| Fin Forming Accuracy | ±0.1mm |
| Fin Forming Method | Roller Forming |
| Fin Pitch | 6.5-10mm |
| Maximum cut-off times | 60 Times /min |
| Fin Material | Aluminum, Copper |
| Power Supply | AC220V |
| Weight | 1.5 Tons |
| Operation | Automatic |
| Forming Blade | Single Blade |
| Material | Aluminium |
| Tube Pitch | 6.5-10 |
| Machine Type | Fin Tube Machine Customized |
| Application | Automotive Aluminum Radiator Fin Forming Machine |
| Control System | Touch Screen Operation |
Applications:
Sunhope aluminum fin forming machine for radiator is made in
Guangdong, China. It has high forming accuracy and consistent
product quality. It has a fin pitch of 6.5-10mm and can reach a
maximum of 60 cut-off times per minute. The fin thickness can
achieve 0.2-0.3mm, and the fin height is 5-8mm. The fin forming
motor is 2.2KW. It is a customized Aluminium 6.5-10 Tube Pitch
Radiator Fin Machine and Fin Tube Machine.
Sunhope aluminum fin forming machine for radiator has a strong
performance and high quality. It is suitable for aluminum radiator,
air conditioner, heater, and other heat exchange equipment. It can
form various fin shapes, such as flat fin, serrated fin, louvered
fin, etc. The forming speed is fast and the noise is low. It is
widely used and trusted in the radiator manufacturing industry.
Sunhope aluminum fin forming machine for radiator is the top choice
for radiator manufacturers. It is reliable and easy to operate. It
comes with a variety of features, such as automatic lubrication
system, automatic counting system and automatic control system. It
is a cost-effective choice for high efficiency and high quality fin
forming.
Customization:
Sunhope Radiator Fin Forming Machine
Brand Name: Sunhope
Place of Origin: Guangdong,China
Fin Height: 5-8mm
Fin Material: Aluminum, Copper
Fin Forming Method: Roller Forming
Fin Thickness: 0.2-0.3mm
Fin Type: Louver, Serrated
Our Sunhope radiator fin forming machine is the perfect solution
for 8mm fin height fin forming. It is ideal for car aluminum
radiator & condenser fin making and copper fin making. Our machine
is reliable and efficient, providing you with excellent quality fin
products.
