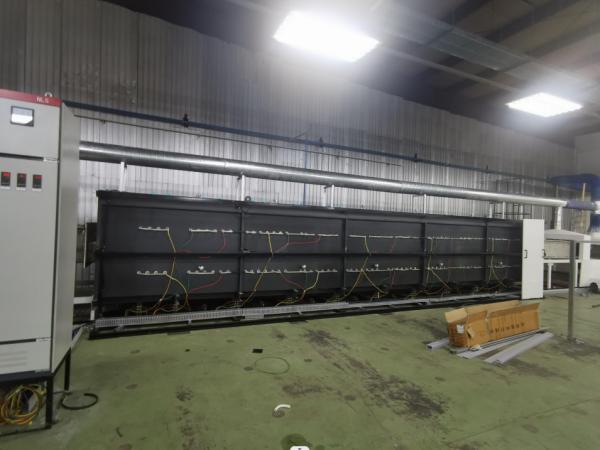

250mm Maximum height of Work Piece Aluminum Radiator Brazing
Furnace 35～45m 3/h Nitrogen consumption
Product introduction of Aluminum Brazing Furnace:
- Adopt the latest technology and high quality lining materials to
ensure the heat preservation performance of the furnace body and
have the remarkable effect of energy saving.
- Fine and reasonable heating furnace partition, high precision
advanced temperature control meter hardware selection and software
parameter adjustment, so that the furnace temperature control
precision is high (±0.2℃), the temperature difference of the
product in the brazing area (575℃~650℃) is less than ±3℃;
- Adoption of advanced frequency conversion speed control conveyor
belt control system, so that the work-piece can achieve step-less
variable transmission, precisely control the running time of
work-piece in each heating zone, to ensure that the aluminum
brazing heating curve accurately achieve;
Product features of Aluminum Brazing Furnace:
Controlled atmosphere aluminum furnace system includes a spray
system, a drying furnace, a set of control atmosphere brazing
furnace and a cooling system.The controlled atmosphere brazing
furnace has a preheating chamber with an atmosphere curtain and
behind that is the brazing area from which the product will be go
through a retarded cooling chamber with an atmosphere curtain to
make the work-piece weld and fix . The temperature of the
work-piece from the retarded cooling chamber is about 300℃ and then
the temperature of the work-piece is reduced again through the air
cooling chamber to make the manual operation convenient.
The purchaser shall provide the cleaned and clamped work-pieces and
place them on the conveyor belt, and braze them through the brazing
system.
.
Product parameters of Aluminum Brazing Furnace:
| Mesh belt operating surface height | 900mm |
| Normal operating temperature | 600～650℃ |
| Furnace temperature uniformity | ±3℃ |
| maximum service temperature | 700℃ |
| effective working size | 1000mm(Mesh belt width)×250mm(Height of mesh belt) |
| The channel size | 1050mm×300mm(Straight edge height) |
| Temperature control zone | 6 points in Section 6 of Section 3 (temperature measurement) |
| Temperature measuring point layout | The upper and lower of each section + furnace temperature
measurement |
| design power | 380V Three phase |
| Applicable Industrie | Heat treatment |
| heating mode | resistance wire |
| length of heating zone | 8M |
| conveying chain | SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm |
About us:
Our company has been engaged in the manufacture and development of
automobile radiator condenser products for more than 15 years. In
recent years,many companies from other countries in the same
industry also bought the CKD from us and purchased the machine
equipment from us as well.
At the same time, our company provides customers with all kinds of
radiator, condenser required hardware and plastic components.
Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your
place or buying any products , please contact us and we will
provide you with the best service and best price.
FAQ:
1.Does the aluminum Brazing furnace machine is customized or
standard size?
The aluminum Brazing furnace machine is customized by customers
according to their respective capacity requirements and product
series specifications.
2.What’s the style of spray of the aluminum Brazing furnace
machine?
The spray of the aluminum Brazing furnace machine can be divided
into dry electrostatic powder spray style and aqueous solution
spray style.
3.How to know what kinds of specifications of the aluminium brazing
furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the
core and the dimensions of the production workshop.The engineer
will give the best cost-effective solution according to the
information provided.
